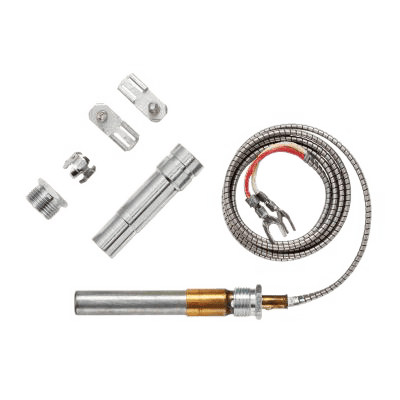

Q313A1139/U 750 mV Thermopile, 35" Long with Push-in Clip

Part Number: Q313A1139/U Brand: Resideo Technologies Inc

750 mV Thermopile, 35" Long with Push-in Clip

Price
Request a Quote
Stock
1 In Stock
Request Information
Does not ship to OH, United States
Q313 Thermopile Generator contains multiple thermocouples connected in series to provide 750mV.

The power generated is sufficient to operate an automatic millivolt gas control system, independent of any outside power source.
Features
  • Push-in Clip, Split Nut, or Adapter Assembly Available - Depending on Model, for Easy Pilot Burner Installation.
  • Spade or Quick-connect Terminals Available for Millivolt Gas Control Connections.
  • Available in a Variety of Lead Lengths.
Q313 Thermopile Generator contains multiple thermocouples connected in series to provide 750mV.

The power generated is sufficient to operate an automatic millivolt gas control system, independent of any outside power source.
Features
  • Push-in Clip, Split Nut, or Adapter Assembly Available - Depending on Model, for Easy Pilot Burner Installation.
  • Spade or Quick-connect Terminals Available for Millivolt Gas Control Connections.
  • Available in a Variety of Lead Lengths.
Close

Specifications

Brand

Includes

  • Push-in clip

Used With

  • Q314
  • Q324
  • Q327
  • Q377
  • Q379
  • Q382
  • Pilot Burners

Temperature Ratings

  • Hot Junction: 760° C; Cold Junction: 416° C
  • Hot Junction: 1400° F; Cold Junction: 780° F

Voltage

  • 750 mV; Open circuit output: 600 mV to 750 mV

Connection Type

  • Spade Terminals

Resistance

  • 2.89 ohms

Length

  • 35 in.
  • 889 mm
Close

Applications

  • Thermopile
