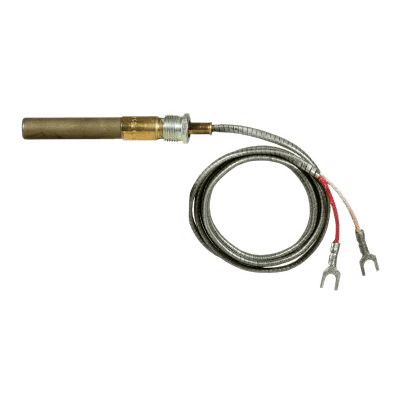

Q313A1188/U 750 mV Thermopile, 35" Long with Push-in Clip and Split Nut

Part Number: Q313A1188/U Brand: Resideo Technologies Inc

750 mV Thermopile, 35" Long with Push-in Clip and Split Nut

Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States

Q313 Thermopile Generator contains multiple thermocouples connected in series to provide 750mV.

The power generated is sufficient to operate an automatic millivolt gas control system, independent of any outside power source.
Features
  • Push-in Clip, Split Nut, or Adapter Assembly Available - Depending on Model, for Easy Pilot Burner Installation.
  • Spade or Quick-connect Terminals Available for Millivolt Gas Control Connections.
  • Available in a Variety of Lead Lengths.

Specifications

Includes

  • Push-in clip and split nut

Used With

  • Q314
  • Q324
  • Q327
  • Q377
  • Q379
  • Q382
  • Pilot Burners

Temperature Ratings

  • Hot Junction: 760 °C; Cold Junction: 416 °C
  • Hot Junction: 1400 °F; Cold Junction: 780 °F

Voltage

  • 750 mV; Open circuit output: 600 mV to 750 mV

Connection Type

  • Spade Terminals

Resistance

  • 2.89 ohms

Length

  • 35 in.
  • 889 mm

  • Thermopile
