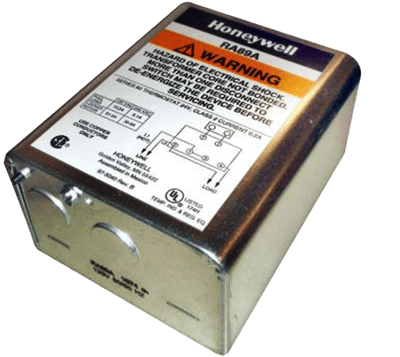

RA89A1074/U Switching Relay with Internal Transformer

Part Number: RA89A1074/U Brand: Resideo Technologies Inc

Switching Relay with Internal Transformer

Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States

Provide intermediate switching of a line voltage device from a low voltage controller.
Features
  • Integral Transformer Provides Low Voltage Power For Control Circuit.

Specifications

Dimensions

  • 5-1/4 in. high x 4-1/4 in. wide x 2-5/16 in. deep
  • 133 mm high x 108 mm wide x 59 mm deep

Includes

  • Integral transformer, enclosure

Electrical Ratings

  • Maximum Input - 5.0 W

Frequency

  • 50 Hz; 60 Hz

Approvals, Underwriters Laboratories Inc.

  • Listed: File No. E4436, Guide No. XAPX

Approvals, Canadian Standards Association

  • Certified: File No. LR1620

Tradeline Value

  • Tradeline

Electrical Connections

  • Control Circuit- 2-Wire

Temperature Ratings

  • 46 °C maximum ambient for 60 Hz. 41 °C maximum ambient for 50 Hz.
  • 115 °F maximum ambient for 60 Hz. 105 °F Max. Ambient for 50 Hz.

Switching

  • SPST

Contact Ratings - AFL

  • At 120 Vac - 10.2A; 240 Vac - 5.1A

Contact Ratings - ALR

  • At 120 Vac - 61.2A; 240 Vac - 30.6A

Contact Ratings - Resistive

  • At 120 Vac - 10A; 240 Vac - 6.0A

Input Voltage

  • 120V

Coil Ratings Voltage

  • 24 Vac

Coil Ratings Current

  • 0.4A

  • Provide Intermediate SPST Switching of a Line Voltage Device from a Low Voltage Controller.
