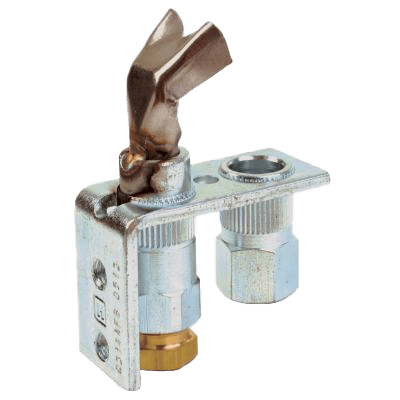

Q314A6094/U Standing Pilot Burner for Natural Gas with a BCR-18 and BBR-10 Orifice - Left Single-tip Style

Part Number: Q314A6094/U Brand: Resideo Technologies Inc

Standing Pilot Burner for Natural Gas with a BCR-18 and BBR-10 Orifice - Left Single-tip Style

Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States

Non primary-aerated, insert orifice type pilot burner for main burner ignition. Used with Q309, Q340, Q390 thermocouples or Q313 thermopiles.
Features
  • Variety of Mounting Brackets Available
  • Single Tip Style
  • Variety of Tip Directions to Provide Desired Flame Pattern.
  • Interchangeable, Color-coded Orifices can be Ordered to Convert Between Natural and LP Gas

Specifications

Includes

  • BCR18 and BBR-10 orifices. Special mounting bracket with screws to convert "B" bracket to "A" bracket.

Mounting

  • Bracket Style B; Includes Bracket A adapter

Type of Gas

  • Natural
  • LP

Approvals, Canadian Gas Association

  • CSA International: 112395

Aeration

  • Non-primary

Compression Fitting Size

  • 1/4 in.

Compression Fitting Length

  • 0.65 in.

Orifice

  • BCR-18 (0.018 in.) / BBR-10 (0.010 in.) Packed

Tip Style

  • Target

Direction of Front Tip

  • (L) Left

  • Pilot Burner for Standing Pilot Applications
