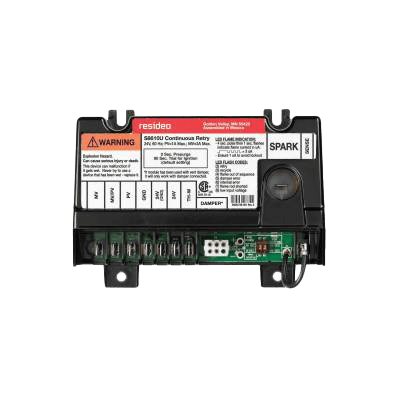

S8610U3009/U Universal Intermittent Pilot Ignition Module

Part Number: S8610U3009/U Brand: Resideo Technologies Inc

Universal Intermittent Pilot Ignition Module

Price
Request a Quote
Stock
7 In Stock
Request Information
Does not ship to OH, United States
Universal intermittent pilot ignition module replaces multiple field installed intermittent pilot modules supplied by Resideo, Robertshaw, Johnson, and UTEC - HSC.

Uses existing intermittent pilot burner. Includes cross reference, instructions, and accessories for easy replacement.
Features
  • Replaces Over 400 White-Rogers, Robertshaw and Resideo Intermittent Pilot Ignition Modules
  • Provides Ignition Sequencing, Flame Monitoring and Safety Shutoff For Intermittent Pilot Warm Air Furnaces and Heating Appliances
  • Provides 100 Percent Pilot Gas Shutoff if Pilot Fails to Light; After 6-Minute Delay, Trial for Ignition is Repeated. Ignition Trial/Delay Sequence is Repeated Until the Appliance Lights or Call For Heat is Removed.
  • Includes Spark Cable Adapters to Allow Field Replacement of Both Resideo and Competitive Controls without Replacing Existing Spark Cable.
Universal intermittent pilot ignition module replaces multiple field installed intermittent pilot modules supplied by Resideo, Robertshaw, Johnson, and UTEC - HSC.

Uses existing intermittent pilot burner. Includes cross reference, instructions, and accessories for easy replacement.
Features
  • Replaces Over 400 White-Rogers, Robertshaw and Resideo Intermittent Pilot Ignition Modules
  • Provides Ignition Sequencing, Flame Monitoring and Safety Shutoff For Intermittent Pilot Warm Air Furnaces and Heating Appliances
  • Provides 100 Percent Pilot Gas Shutoff if Pilot Fails to Light; After 6-Minute Delay, Trial for Ignition is Repeated. Ignition Trial/Delay Sequence is Repeated Until the Appliance Lights or Call For Heat is Removed.
  • Includes Spark Cable Adapters to Allow Field Replacement of Both Resideo and Competitive Controls without Replacing Existing Spark Cable.
Close

Specifications

Brand

Dimensions

  • 3-15/16 in. high x 5-7/16 in. wide x 2-5/8 in. deep
  • 100 mm high x 138 mm wide x 67 mm deep

Includes

  • Damper connection with automatic vent damper plug

Electrical Ratings

  • 24 Vac

Frequency

  • 60 Hz

Approvals, Canadian Standards Association

  • Design Certified

Tradeline Value

  • Tradeline

Flame Failure Response Time

  • 2 seconds maximum

PrePurge

  • Configurable to 30 seconds or no prepurge

Ambient Temperature Range

  • -40° to +74° C
  • -40° to +165° F

Ignition System Type

  • Intermittent Pilot

Ignition Sequence

  • Continuous Retry

Typical Gas Control

  • VR8204
  • VR8304

Type of Gas

  • Natural or LP

Flame Sense

  • Single Rod or Two Rods

Ignition Source

  • Internal high voltage spark generator

Ignition Trials To Lockout

  • Continuous retry

Lockout Timing

  • Continuous retry

Ignition Trial Time

  • 15 or 90 sec

Maximum Valve Load at 24 Vac

  • 1 A Pilot, 2A Main @ 165 F; 1 A Pilot, 1 A Main @ 175 F

Typical Ignition Hardware

  • Q345
  • Q3451
  • Q3452

Between Trial Time

  • 5 minute delay after failed trial for ignition.
Close

Applications

  • For Use with Natural or LP Gas
  • For Use in Single Rod or Dual Rod/Remote Sense Applications
