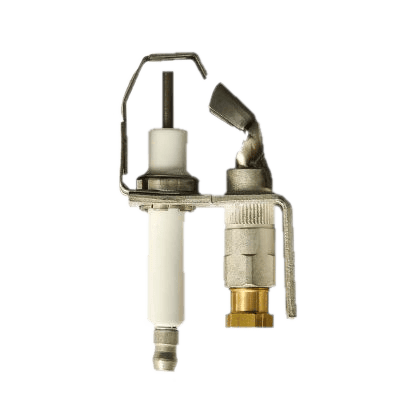

Q345A1321/U Intermittent Pilot Burner - Natural Gas with BCR-18 Orifice. Right Tip, A or B Bracket

Part Number: Q345A1321/U Brand: Resideo Technologies Inc

Intermittent Pilot Burner - Natural Gas with BCR-18 Orifice. Right Tip, A or B Bracket

Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States

Non primary-aerated combination pilot burner and ignitor.
Features
  • Includes Pilot Burner with Bracket, Ceramic-insulated Kanthal Flame Rod/Spark Igniter and Ground Strap.
  • Single Tip Style.

Specifications

Includes

  • Special mounting bracket with screws to convert "B" bracket to "A" bracket.

Mounting

  • Bracket Style B

Approvals, Underwriters Laboratories Inc.

  • UL Listed: MCUR2.MH63583

Type of Gas

  • Natural

Aeration

  • Non-primary

Compression Fitting Size

  • 1/4 in.

Compression Fitting Length

  • 0.78 in.

Orifice

  • BCR-10 (0.010 in.)

Tip Style

  • Target

Direction of Front Tip

  • (K) Right

  • Universal Pilot Burner for Intermittent Pilot Applications
  • Used with the S86, S860, S8610, or S8670 in Intermittent Pilot Systems.
