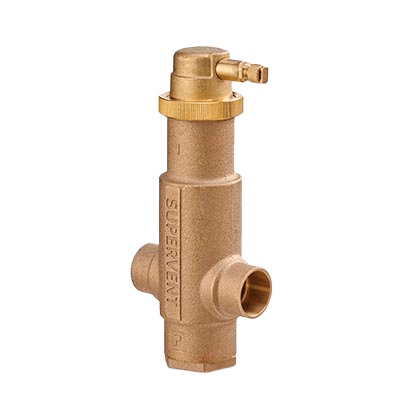

PV100 1" Connection SuperVent

Brand: Resideo Technologies Inc
Does not ship to VA, United States

The SuperVent, purges air through a no clog vent assembly, to control dirt and debris and minimize air vent fouling in Hydronic heating systems, while eliminating the need for bleeding.
Features
  • No Clog Vent.
  • Dirt and Debris Resistant.
  • 360 Degree Adjustable Collar Ring for Installation Flexibility.
  • Stainless Steel Concentrator which Eliminates Gurgling Noise.
  • Bronze Body for Rigid Construction.
  • Threaded Connections.

Models matching criteria: 3
1" NPT Connection SuperVent view more
  • 6-1/2 in. high x 3-3/32 in. wide; Maximum diameter: 2-3/32 in.
  • 192 mm high x 79 mm long; Maximum diameter: 53 mm
  • Materials: Bronze
  • Connection Size: 1/2 in.
  • Connection Type: Female NPT
In Stock
Does not ship to VA, United States
1" BSPP Connection SuperVent view more
  • 6-1/2 in. high x 3-3/32 in. wide; Maximum diameter: 2-3/32 in.
  • 192 mm high x 79 mm long; Maximum diameter: 53 mm
  • Materials: Bronze
  • Connection Size: Bottom: 1/2 in. or connect blow-down valve in dirty systems
  • Connection Type: BSPP
  • Customer Special: MartinOrgee
In Stock
Does not ship to VA, United States
1" Sweat Connection SuperVent view more
  • 6-1/2 in. high x 3-11/16 in. wide; Maximum diameter: 2-3/32 in.
  • 192 mm long x 94 mm wide; Maximum diameter: 53 mm
  • Materials: Bronze
  • Connection Size: 1/2 in.
  • Connection Type: Sweat
In Stock
Does not ship to VA, United States

Specifications

Maximum Safe Operating Pressure

  • 125 psi
  • 862 kPa

Weight

  • 2.75 lb
  • 1.2 kg

Operating Temperature Range

  • 240 °F Maximum
  • 115 °C Maximum

Pipe Size

  • 1 in.

Capacity

  • 22 Cv

  • Residential or Commercial Closed Loop Hydronic Heating or Chilled Water Systems
