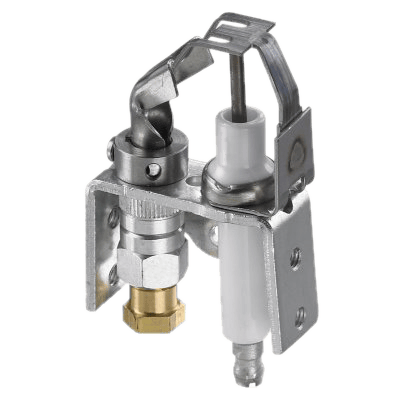

Q345U1005/U Universal Pilot Burner for Intermittent Pilot Applications - Target Style Hood

Part Number: Q345U1005/U Brand: Resideo Technologies Inc

Universal Pilot Burner for Intermittent Pilot Applications - Target Style Hood

Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States

Non primary-aerated combination pilot burner and ignitor.
Features
  • Includes Pilot Burner with Bracket, Ceramic-insulated Kanthal Flame Rod/Spark Igniter and Ground Strap.
  • Single Tip Style.

Specifications

Includes

  • BCR-20
  • BCR-18
  • BBR-12
  • BBR-11 orifices
  • Adjustable tip style
  • Universal mounting bracket

Used With

  • S8600F
  • S8600H
  • S8600M
  • S8610F
  • S8610H
  • S8610M
  • S8610U
  • S8660D
  • S8660E
  • S8670D
  • S8670E

Mounting

  • U

Type of Gas

  • Natural
  • LP

Aeration

  • Non-primary

Compression Fitting Size

  • 1/4 in. and 1/8 in.

Tip Style

  • Single

Direction of Front Tip

  • Adjustable Left, Right, and Center

Orifice

  • BCR-10 (0.010 in.)

Dual Rod or Single Rod

  • Single Rod

Pilot Btuh

  • 1000 Btuh

  • Universal Pilot Burner for Intermittent Pilot Applications
  • Used with the S86, S860, S8610, or S8670 in Intermittent Pilot Systems.
