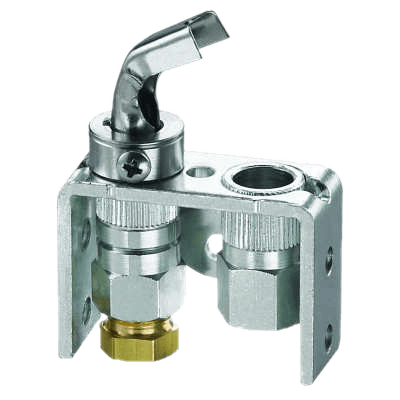

Q314U1001/U Universal Pilot Burner for Standing Pilot Applications - Target Style Hood

Part Number: Q314U1001/U Brand: Resideo Technologies Inc

Universal Pilot Burner for Standing Pilot Applications - Target Style Hood

Price
Request a Quote
Stock
2 In Stock
Request Information
Does not ship to OH, United States
Non primary-aerated, insert orifice type pilot burner for main burner ignition. Used with Q309, Q340, Q390 thermocouples or Q313 thermopiles.
Features
  • Variety of Mounting Brackets Available
  • Single Tip Style
  • Variety of Tip Directions to Provide Desired Flame Pattern.
  • Interchangeable, Color-coded Orifices can be Ordered to Convert Between Natural and LP Gas
Non primary-aerated, insert orifice type pilot burner for main burner ignition. Used with Q309, Q340, Q390 thermocouples or Q313 thermopiles.
Features
  • Variety of Mounting Brackets Available
  • Single Tip Style
  • Variety of Tip Directions to Provide Desired Flame Pattern.
  • Interchangeable, Color-coded Orifices can be Ordered to Convert Between Natural and LP Gas
Close

Specifications

Brand

Includes

  • BCR-18, BBR-10, CAR-12, CAR-13, BBR-8 orifices, Standard and low BTU hoods, Adjustable tip style, Universal mounting bracket

Used With

  • Q309
  • Q340
  • Q390
  • Q313

Mounting

  • U

Type of Gas

  • Natural
  • LP

Aeration

  • Non-primary

Compression Fitting Size

  • 1/4 in. and 1/8 in.

Orifice

  • BCR-18 (0.018"); BBR-10 (0.010"); CAR-12 (0.012"); CAR-13 (0.013"); BBR-8 (0.008")

Tip Style

  • Single

Direction of Front Tip

  • Adjustable Left, Right, and Center
Close

Applications

  • Universal Pilot Burner for Standing Pilot Applications
