Q348U1009/U Universal Pilot Burner for Intermittent Pilot Applications - Batwing Style Hood

Part Number: Q348U1009/U Brand: Resideo Technologies Inc

Universal Pilot Burner for Intermittent Pilot Applications - Batwing Style Hood

Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States

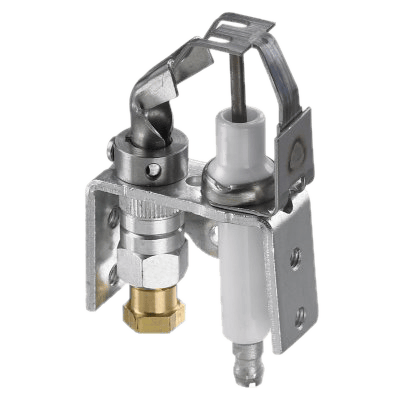

These pilot burner/igniter-sensors provide pilot flame ignition and sensing in intermittent pilot systems.

They consist of a bat-wing type pilot burner with a combination spark igniter and flame sensor.
Features
  • Includes Pilot Burner with Bracket, Ceramic-insulated Kanthal Flame Rod/Spark Igniter and Ground Strap.
  • Single Tip Style.

Specifications

Includes

  • Universal mounting bracket
  • NE22
  • KF24
  • A26
  • KR14 orifice
  • 1" batwing

Used With

  • S8600F
  • S8600H
  • S8600M
  • S8610F
  • S8610H
  • S8610M
  • S8610U
  • S8660D
  • S8660E
  • S8670D
  • S8670E

Mounting

  • U

Type of Gas

  • Natural
  • LP

Aeration

  • Primary

Compression Fitting Size

  • 1/4 in. and 1/8 in.

Orifice

  • NE22 (0.022"), KF24 (0.024"), A26 (0.026"), KR14 (0.014")

Tip Style

  • Batwing

Direction of Front Tip

  • Dual wing - 1 in. wing span

Dual Rod or Single Rod

  • Single Rod

Pilot Btuh

  • 1000 Btuh

  • Universal Pilot Burner for Intermittent Pilot Applications
