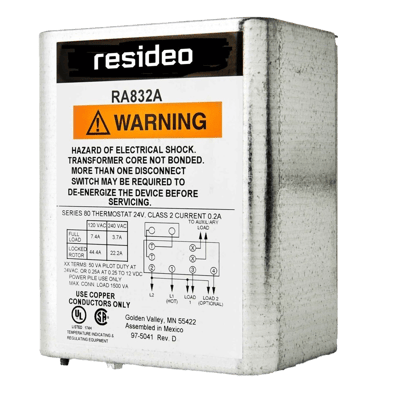

RA832A1066/U Switching Relay with Internal Transformer

Part Number: RA832A1066/U Brand: Resideo Technologies Inc

Switching Relay with Internal Transformer

Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States

Provide intermediate switching of a line voltage device from a low voltage controller.
Features
  • Integral Transformer Provides Low Voltage Power For Control Circuit.
  • The RA832A is a TPST Relay. One Relay Pole is Designed For Low Voltage or Millivoltage - Powerpile® Auxiliary Load. Two Other Relay Poles are for Line Voltage Loads.

Specifications

Dimensions

  • 5-1/4 in. high x 4-1/4 in. wide x 2-5/16 in. deep
  • 133 mm high x 108 mm wide x 59 mm deep

Includes

  • Integral transformer, enclosure

Electrical Ratings

  • Maximum Input - 5.0 W

Frequency

  • 50 Hz; 60 Hz

Approvals, Underwriters Laboratories Inc.

  • Listed: File No. E4436, Guide No. XAPX

Approvals, Canadian Standards Association

  • Certified: File No. LR1620

Tradeline Value

  • Tradeline

Electrical Connections

  • Control Circuit- 2-Wire

Temperature Ratings

  • 46 °C maximum ambient for 60 Hz. 41 °C maximum ambient for 50 Hz.
  • 115 °F maximum ambient for 60 Hz. 105 °F Max. Ambient for 50 Hz.

Switching

  • DPST; one pole line voltage, the other low voltage or millivolt

Pilot Duty Ratings

  • Secondary - 50 VA @ 24V

Contact Ratings - AFL

  • At 120 Vac - 7.4A AFL; 240 Vac - 3.7A

Contact Ratings - ALR

  • At 120 Vac - 44.4A; 240 Vac - 22.2A

Contact Ratings - Resistive

  • At 120 Vac - 10A; 240 Vac - 6.0A

Input Voltage

  • 120V

Coil Ratings Voltage

  • 24 Vac

Coil Ratings Current

  • 0.4A

Electrical Ratings, Contacts

  • Maximum connected load is 2000 VA (120 Vac to 240 Vac); Secondary DC Rating - 1A @ 12 Vdc; Secondary millivolt Rating - 300 mA min. @ 750 mV

  • Provide Intermediate DPST Switching of a Line Voltage Device from a Low Voltage Controller.
