SPECS & DETAILS
| APPEARANCE |
| Color Appearance | White |
| FEATURES |
| Fan Speed Stages | 5+ Auto |
| Fan Speeds CFM | 846
744
668
592
482 |
| Indoor Sound Level | 54 dBA
50 dBA
47 dBA
44 dBA
38 dBA |
| Outdoor Model to Complete Multi Zone System | Select Multi Zone Outdoor Units |
| Outdoor Model to Complete Single Zone System | 1U24TE2HDA |
| Product Type | Multi Zone
Single Zone |
| Series | Indoor Units (Compatible with Select Series) |

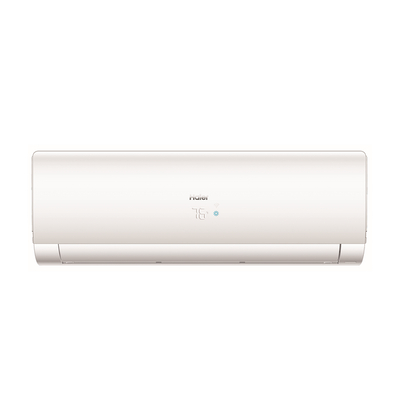

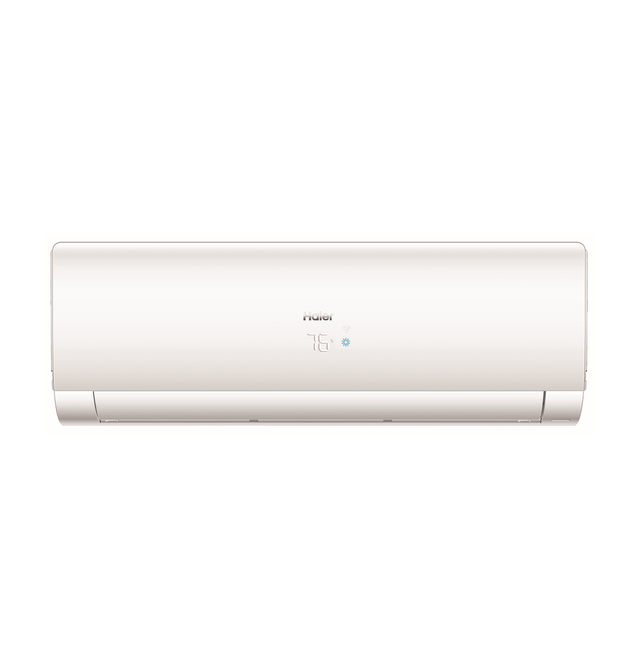

| Style | Highwall |
| Unit Type | Indoor |
| WiFi Connect | Built-In
SmartHQ Home Built-In |
| POWER / RATINGS |
| Cooling Rated Capacity BTU/Hr | 24,600 |
| Voltage/Hertz/Phase | 208-230/60/1 |
| WARRANTY |
| Parts Warranty | Limited 5-Year Parts and Compressor
10-Year Limited Parts and Compressor Warranty with Registration
See warranty documentation for complete information |
| WEIGHTS & DIMENSIONS |
| Approximate Shipping Weight | 46 lb |
| Liquid O.D. Refrigerant Line | 1/4" |
| Net Weight | 37.5 lb |
| Overall Depth | 9 in |
| Overall Height | 13 1/4 in |
| Overall Width | 44 in |
| Suction O.D. Refrigerant Line | 1/2" |
ABOUT THIS PRODUCT
ODU Compatibility
Compatible with select Outdoor Units.
Blue Fin
A hydrophilic aluminum fin ensures condensing water flows away smoothly.
Warm Start
Get warm quickly with a fan that will not blow cold air during heating mode startup.
Turbo Mode
Cools or heats the room quickly.
Quiet Mode
Maintain comfort levels while minimizing indoor noise with quiet mode.
Long Distance Air Supply
Enjoy comfort made easy with a louver that adjusts airflow upward when cooling, or downward when heating.
Easy Install Features
Loaded with features installers love such as an easy access PCB, detachable bottom cover, easy installation clip and a quick mount wall template and bracket.
2-Way Piping Drain
Right or left side drain configuration simplifies installation.
SmartHQ Home
Built-In WiFi allows you to monitor status, adjust temperature, and set cooling and heating schedules from anywhere using your smartphone.
Room Temperature Display
Dual seven segment display on the front panel provides an easy-to-read temperature display.
Control Options
User-friendly handheld remote and wired mounted control options give you the flexibility in how you control your comfort.
Voice Control
Enjoy hands-free temperature control by connecting your ductless system to Google Assistant or Amazon Alexa.
10-Year Limited Warranty with Registration
10-Year Limited Parts and Compressor Warranty with registration; see warranty documentation for complete information.
See specification guide for full heating, cooling, and system details.
