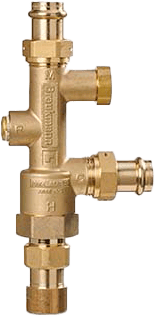

AMX101-US-1LF/U

Series: AMX101-US-1LF/U AMX Series DirectConnect Brand: Resideo Technologies Inc

AMX Series DirectConnect

Price
Request a Quote
Stock
8 In Stock
Does not ship to OH, United States
Request Information
View More

Specifications

Brand

Comments

  • Low lead Content < .25 % by weighted average

Maximum Safe Operating Pressure

  • 150 psi
  • 1034 kPa

Includes

  • Check valves on hot and cold ports

Approvals, Canadian Standards Association

  • CSA Certified

Approvals, Others

  • NSF/ANSI, IAPMO

Approvals, ASSE

  • 1017

Connection Type

  • Union Sweat, 3/4 in. Bottom

Minimum Flow Rate

  • 0.5 gpm

Pipe Size

  • 3/4 in.
  • DN 20

Fluid Temperature

  • Cold Inlet: 4° to 27° C: Hot Inlet: 49° to 82° C; Mixed Outlet: 21° to 63° C
  • Cold Inlet: 39° to 80° F; Hot Inlet: 120° to 180° F; Mixed Outlet: 70° to 145° F

Capacity

  • 4 Cv

Valve Type

  • Mixing Valves
