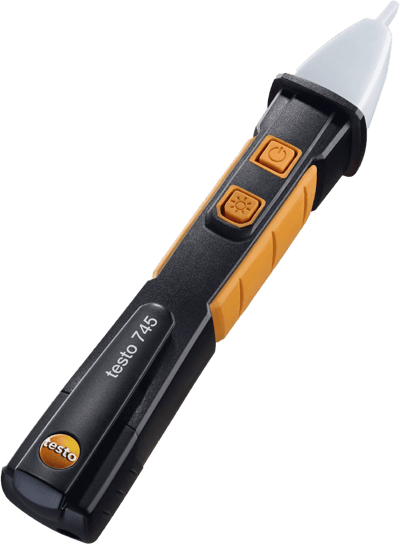

Testo 745 - Non-Contact Voltage Tester

Part Number: 0590 7450 Brand: Testo

Testo 745 - Non-Contact Voltage Tester

Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States

The Testo 745 non-contact voltage tester is ideally suited for fast initial checking of any suspected fault sources.

It filters high-frequency interference signals and has a two-stage sensitivity setting.

The Testo 745 non-contact voltage tester means you can quickly and easily determine voltage or de-energization.

In contrast to most other models on the market, it has a filter for high-frequency interference signals which enables reliable voltage indication.

If voltage is determined, the instrument gives a warning via a clear visual and acoustic signal.

The sensitivity of the instrument can be set in two stages: stage 1 for phase detection, stage 2 for voltage indication.

The integrated torch also enables you to work safely in dark surroundings.

In addition, the Testo 745 voltage tester is both waterproof and dustproof according to IP 67.
Features
  • Voltage range up to 1,000 V
  • Waterproof and dustproof according to IP 67
  • Adjustable for phase detection or voltage indication
  • Visual and acoustic signal

Specifications

Brand

Delivery Scope

  • Testo 745 Non-Contact Voltage Tester, including Batteries, Calibration Protocol and Instruction Manual

AC Voltage

  • Measuring Range: 12 to 1000 V

Operating Humidity

  • 0 to 80 %RH

Weight

  • 63 g

Dimensions

  • 155 x 25 x 23 mm

Operating Temperature

  • -10° C to +50° C

Product Colour

  • Black

Protection Class

  • IP67

Standards

  • EN 61326-1, EN 61010-1

Alarm Function

  • via LED, Audible

Battery Type

  • 2 AAA micro Batteries

Storage Temperature

  • -15° C to +60° C

Overvoltage Category

  • CAT IV 600 V, CAT III 1000 V

Authorizations

  • CSA, CE

Instrument Measurement Functions

  • Measuring Point Illumination: Yes

  • Ideal for Voltage Testing
    • Voltage Range up to 1000 V, Filter for High-Frequency Interference Signals, Waterproof and Dustproof according to IP 67, Adjustable Sensitivity (2 Levels), Visual and Acoustic Signal, Integrated Torch for Measuring Point Illumination
  • Overview of Applications
    • Non-Contact Voltage Testing
    • Searching for Cable Breakages
    • Locating Live and Neutral Wires
