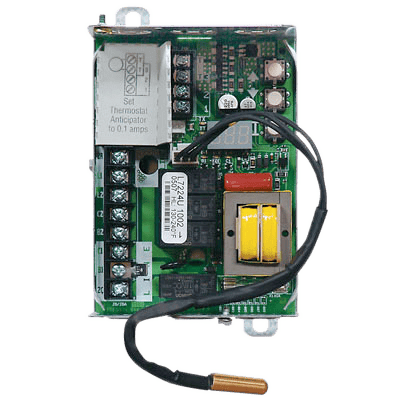

L7224U1002/U Universal Electronic Oil Aquastat with EnviraCOM Communication

Part Number: L7224U1002/U Brand: Resideo Technologies Inc

Universal Electronic Oil Aquastat with EnviraCOM Communication

Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States

The L7224U Oil Electronic Aquastat® Controller provides electronic temperature sensing in a UL limit-rated controller; controls the circulator, oil burner and boiler temperature; and provides status, LED diagnostic and EnviroCOM communication.

Specifications

Dimensions

  • 7-1/8 in. high x 4-1/4 in. wide x 2-5/8 in. deep

Temperature Range

  • 181 mm high x 109 mm wide x 67 mm deep

Mounting

  • -30 °F to 150 °F
  • -34 °C to 66 °C

Frequency

  • Well mount, horizontal or vertical position, or flush mounted remote from the well.

Approvals, Underwriters Laboratories Inc.

  • 60 Hz

Operating Humidity Range

  • Recognized

Power Consumption

  • 0 to 95% RH, non-condensing

Voltage

  • 7 VA
  • 120 Vac

Operating Temperature Range

  • High Limit: 130 °F to 240 °F; Low Limit: 110 °F to 220 °F
  • High Limit: 54 °C to 116 °C; Low Limit: 43 °C to 104 °C

Differential Temperature

  • High limit : 5 to 20 °F adj.; low limit: 10 to 25 °F adj.

Electrical Ratings, Burner

  • At Full Load: 7.4 A @ 120 Vac; At Locked Rotor: 44.4 A inrush

Electrical Ratings, Circulator

  • At Full Load: 7.4 A @ 120 Vac; At Locked Rotor: 44.4 A inrush

  • Oil Aquastat Controller
