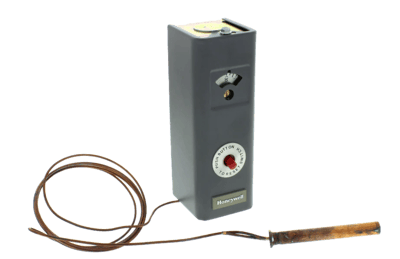

L4008E1156/U High Limit Manual Reset Aquastat, 130F – 270F, 66 in Capillary, Factory Stop at 250F

Part Number: L4008E1156/U Brand: Resideo Technologies Inc

High Limit Manual Reset Aquastat, 130F – 270F, 66 in Capillary, Factory Stop at 250F

Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States

igh Limit Manual Reset Aquastat.
Features
  • Remote Temperature Sensing Element Detects and Responds Rapidly to Temperature Changes.
  • Totally Enclosed Single Pole Single Throw - SPST Micro Switch™ Snap-acting Switch.
  • Visible Control Point Scale and External Adjustment Screw Permit Easy Setting.
  • Horizontal and/or Vertical Mounting of the Remote Element Into Boiler, Tank, or Other Container Unless Otherwise Noted.
  • UL and CSA Listed Limit Device.

Specifications

Hazmat Information

  • UN 1294, TOLUENE, 3, II

Dimensions

  • Case - 5-5/8 in. high x 2 in. wide x 2-1/8 in. deep
  • Case - 143 mm high x 51 mm wide x 54 mm deep

Includes

  • 5 1/2 ft (1.7 m) capillary; Stop factory-set at 250 F (121 C); Heat-conductive compound

Mounting

  • Horizontal or Vertical

Electrical Ratings

  • Millivolt - 0.25 A @ 0.25 to 12 Vdc; At Full Load - 8A @ 120 Vac: 5.1A @ 240 Vac; At Locked Rotor - 48A @ 120 Vac: 30.6A @ 240 Vac

Approvals, Underwriters Laboratories Inc.

  • UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2

Approvals, Canadian Standards Association

  • Certified: File No. LR95329-1

Tradeline Value

  • Tradeline

Operating Temperature Range

  • 130 °F to 270 °F
  • 54 °C to 132 °C

Bulb Size

  • 3/8 in. x 2-7/8 in. copper
  • 10 mm x 73 mm copper

Differential Temperature

  • 5 °F
  • -15 °C

Switching Action

  • SPST, contacts break on temperature rise.

Capillary Length

  • 66 in.

  • For Limiting or Regulating Temperature of Liquids in Boilers or Tanks
  • Can Also Sense Duct or Outside Air Temperature.
  • High Limit; Manual Reset
