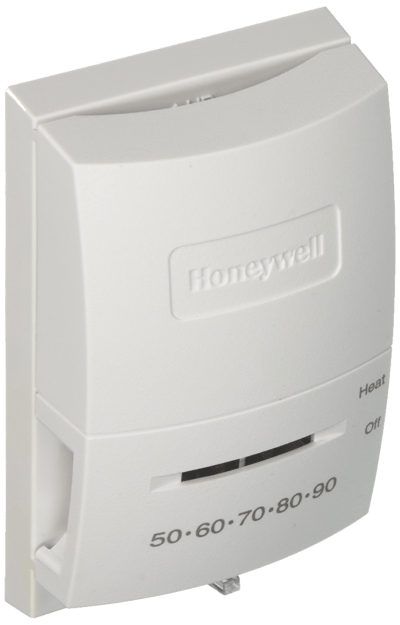

T827K1009/U Mercury Free Heat Only Thermostat for Single Stage Low Voltage Systems

Part Number: T827K1009/U Brand: Resideo Technologies Inc

Mercury Free Heat Only Thermostat for Single Stage Low Voltage Systems

Price
Request a Quote
Stock
3 In Stock
Request Information
Does not ship to OH, United States
Heating thermostats provides control of 750 mV or 12 Vdc heating systems
Features
  • Rated for 12 Vdc and Millvoltage Systems
  • Coiled Bimetal Element Operates Snap-acting Switch
  • Temperature Setting Lever on Bottom of Thermostat
  • Mounting Using Two Screws Through Base to Wall or Vertical Outlet Box
  • Temperature Setting and Thermometer Scale on Cover
Heating thermostats provides control of 750 mV or 12 Vdc heating systems
Features
  • Rated for 12 Vdc and Millvoltage Systems
  • Coiled Bimetal Element Operates Snap-acting Switch
  • Temperature Setting Lever on Bottom of Thermostat
  • Mounting Using Two Screws Through Base to Wall or Vertical Outlet Box
  • Temperature Setting and Thermometer Scale on Cover
Close

Specifications

Brand

Dimensions

  • 4-3/4 in. high x 2-7/8 in. wide x 1-3/8 in. deep
  • 121 mm high x 73 mm wide x 35 mm deep

Mounting

  • Vertical

Stages

  • 1 Heat

Supply Voltage

  • 12 Vdc; 750 mV

Switch Positions - System

  • HEAT-OFF

Color

  • Premier White®

Sensor Element

  • Bimetal

Accuracy

  • ± 2 °F
  • ± 1 °C

Switching Action

  • SPST

Switch Type

  • Precision Snap Action

Terminal Designations

  • R, W

Setting Temperature Range

  • 45° to 95° F
Close

Applications

  • Heat Only
