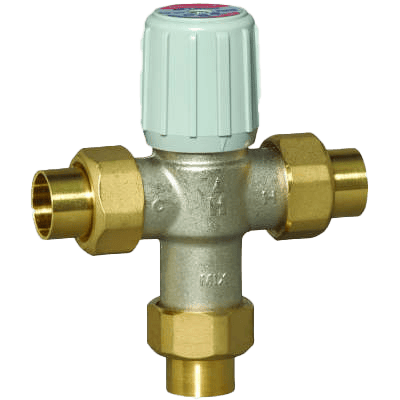

AM100-US-1LF/U 1/2 inch Sweat Union Mixing Valves
Part Number: AM100-US-1LF/U Brand: Resideo Technologies Inc1/2 inch Sweat Union Mixing Valves
Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States
AM-1 series adjusts, maintains, and limits the hot water temperature settings to provide comfort and protect equipment at home.
While increasing the amount of safe, usable hot water, it efficiently offers anti-scald, anti-chill protection.
- Features Dual Purpose Mixing or Diverting Values
- Offers Constant Water Temperature Under Changing Operating Conditions
- Temperature is Limited at Any Point and if Cold Water Supply is Interrupted, Flow Reduction Occurs in Seconds
- Provides Reliable Performance at Minimum Flow of 05 GPM and Proportional Valve for Simultaneous Control of Hot and Cold
- Designed for Easy Maintenance and Teflon® Coating Prevents Mineral Build-up and Extends Life
- Lead Free Products Have Products Numbers End in LF
- Available Temperature Gauge Adapter in Lead-free Brass Material with EPDM O-Ring.
Specifications
Brand
Includes
- Check valves on hot and cold ports
Comments
- Low lead Content <.25% by weighted average
Approvals, Canadian Standards Association
- CSA Certified
Approvals, Others
- NSF/ANSI; IAPMO
Approvals, ASSE
- 1017
Connection Type
- Union Sweat
Minimum Flow Rate
- 0.5 gpm
- 1.9 lpm
Pipe Size
- 1/2 in.
- DN15
Fluid Temperature
- Cold Inlet: 4 °C to 27 °C: Hot Inlet: 49 °C to 82 °C; Mixed Outlet: 21 °C to 63 °C
- Cold Inlet: 39 °F to 80 °F; Hot Inlet: 120 °F to 180 °F; Mixed Outlet: 70 °F to 145 °F
Capacity
- 3.9 Cv
Body Materials
- Teflon-Coated, Nickle-Plated Low Lead Brass
Valve Type
- Mixing Valves
Packing Materials
- EPDM O-rings
- Scald Prevention in Domestic Water
- Nursing Homes
- Public Facilities
- Automatic Faucets
- Industrial Applications
- Photo Processing
Documentation
Brochure
- English Sales/Promotional Materials-Brochure for Thermostatic Mixing Valves Homeowner pdf 2.7 MB
- English Sales/Promotional Materials-Sell Sheet for AM-1 1070 Series Thermostatic Mixing Valve pdf 1.3 MB
- English Sales/Promotional Materials-Sell Sheet for AM-1 Series Thermostatic Mixing Valve pdf 1.1 MB
- French Sales/Promotional Materials-Brochure for Thermostatic Mixing Valves Homeowner pdf 2.0 MB
- French Sales/Promotional Materials-Sell Sheet for AM-1 1070 Series Thermostatic Mixing Valve pdf 1,001 KB
- French Sales/Promotional Materials-Sell Sheet for AM-1 Series Thermostatic Mixing Valve pdf 892 KB
- Spanish Sales/Promotional Materials-Brochure for Thermostatic Mixing Valves Homeowner pdf 2.1 MB
- Spanish Sales/Promotional Materials-Sell Sheet for AM-1 1070 Series Thermostatic Mixing Valve pdf 1,010 KB
- Spanish Sales/Promotional Materials-Sell Sheet for AM-1 Series Thermostatic Mixing Valve pdf 767 KB
Datasheet
- English Product Data and Specifications-Submittal Sheet for AM-1 Series Thermostatic Mixing Valves pdf 185 KB
- French Product Data and Specifications-Feuillet de Soumission - Mitigeurs thermostatiquessans plomb Gamme AM-1 Series pdf 198 KB
- Spanish Product Data and Specifications-Hojas de envios - Válvulas mezcladoras termostáticas libres de plomo pdf 204 KB
