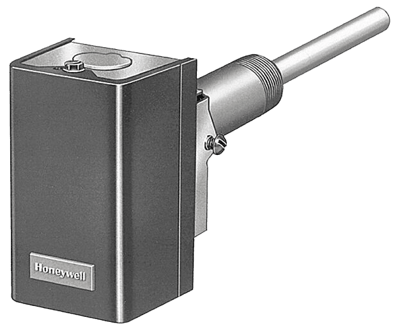

L4080B1352 Immersion Type Aquastat, Bulk Pack

Brand: Resideo Technologies Inc
Does not ship to VA, United States

Immersion type controllers for hydronic heating systems that turn off the burner whenever the boiler water temperature rises to the setpoint.

Vertical mounting
Features
  • High Limit Aquastat Controller has Adjustable Set Point.
  • Models Available for Use with Immersion Wells or For Direct Immersion if Faster Response is Needed.
  • A Factory-set Stop is Available on L4080 to Prevent Setting the Control at Too High a Temperature.
  • Models Available with Second Limit Switch to Shut Off All Gas to The Burner.
  • Liquid Fill in Sensing Element Expands as the Boiler Temperature Rises.
  • At the Set Point Temperature, a Diaphragm-actuated Snap Switch Breaks the Power Supply to the Burner Primary Control.

Models matching criteria: 2
Immersion Type Aquastat, Bulk Pack
In Stock
Does not ship to VA, United States
Immersion Type Aquastat, Bulk Pack
In Stock
Does not ship to VA, United States

Specifications

Hazmat Information

  • UN 1294, TOLUENE, 3, II

Dimension

  • Insertion depth: 3 in.
  • Insertion depth: 76.2 mm

Temperature Range

  • Maximum: 40 °F above setpoint or 265 °F, which ever is lower.
  • Maximum: 22 °C above setpoint or 129.4 °C, which ever is lower.

Includes

  • Siphon Loop

Mounting

  • Mount using 1/4 in. NPT female threads or surface mount through base of case

Electrical Ratings

  • Millivolt - 0.25 A @ 0.25 to 12 Vdc; At Full Load - 8A @ 120 Vac: 4A @ 240 Vac; At Locked Rotor - 48A @ 120 Vac: 24A @ 240 Vac

Approvals, Underwriters Laboratories Inc.

  • UL Listed: -models with well, File No. MP466, Guide No. MBPR, -models less well, File No. MP466, Guide No. MBPR2

Approvals, American Gas Association

  • AGA Design Certified: Test Report 23-11B

Operating Temperature Range

  • 100 °F to 200 °F
  • 38 °C to 93 °C

Differential Temperature

  • 8 F
  • 4.4 C

Switching Action

  • Breaks contact on temperature rise to set point.

Insulation Depth

  • 1-1/2 in. to 3 in.
  • 38 mm to 76 mm

  • Immersion Type Controllers for Hydronic Heating Systems that Turn Off the Burner Whenever the Boiler Water Temperature Rises to the Set Point.
