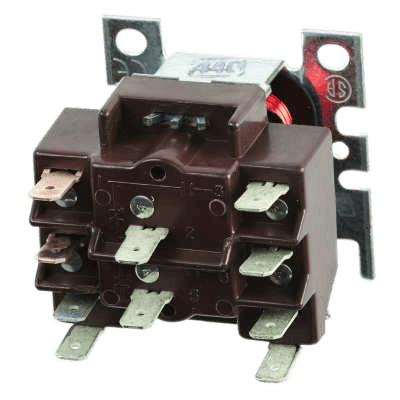

R8222B1067/U General Purpose Relay with SPDT Switching

Part Number: R8222B1067/U Brand: Resideo Technologies Inc

General Purpose Relay with SPDT Switching

Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States

Provide heavy duty switching for refrigeration and air conditioning equipment, appliances, vending machines and similar applications.
Features
  • Molded Terminal Numbers and Circuit Diagram on Top of Relay Provide Easy Identification for Wiring and Checking System Operation.
  • Open Coil Assures Cooler Operation.
  • Laminated Magnet Construction for Higher Efficiency.
  • Base Designed for Easy Replacement of Competitive Relays.
  • Plug Compatible with Steveco 90-340 and Mars 90340.

Specifications

Dimensions

  • 1-7/8 in. high x 2-5/32 in. wide x 2-3/8 in. deep
  • 48 mm high x 55 mm wide x 60 mm deep.

Frequency

  • 50 Hz; 60 Hz

Approvals, Canadian Standards Association

  • Certified: File No. LR35066, Guide No. 184-N-13.13

Approvals, Underwriters Laboratories Inc.

  • UL Component Recognized; File no. MP268, guide no. MCCZ2

Tradeline Value

  • Tradeline

Electrical Connections

  • 1/4 in. quick-connect terminals

Temperature Ratings

  • -29 °C to +68 °C
  • -20 °F to +155 °F

Switching

  • SPDT

Pilot Duty Ratings

  • Minimum: 3 VA @ 24 Vac, 120 Vac, & 480 Vac; Maximum: 25 VA @ 24 Vac, 125 VA @ 120 Vac, 240 Vac, & 480 Vac; Resistive: 3 A @ 277 Vac (0.75 power factor); PowerPile: (Normally Open Contacts Only) 0.25 A @ 0.25 to 12 Vdc

Contact Ratings - AFL

  • 3 A @ 480 Vac; 6 A @ 208 Vac, 240 Vac, 277 Vac; 12 A @ 120 Vac

Contact Ratings - ALR

  • 18 A @ 480 Vac; 35 A @ 208 Vac, 240 Vac, 277 Vac, 60 A @ 120 Vac

Contact Ratings - Resistive

  • 10 A @ 480 Vac; 20.8 A @ 120 Vac, 208 Vac, 240 Vac, 277 Vac

Coil Ratings Voltage

  • 24 Vac
