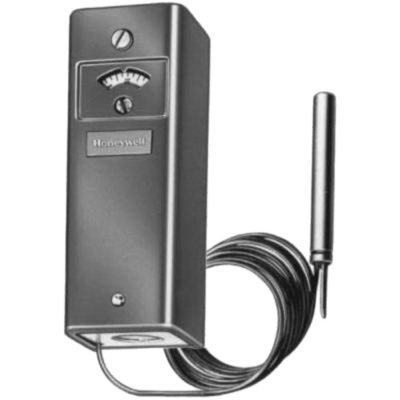

L4008A1015 High or Low Limit Aquastat® Controller

Brand: Resideo Technologies Inc
Does not ship to VA, United States

Specifications
  • Remote Temperature Sensing Element Detects and Responds Rapidly to Temperature Changes.
  • Totally Enclosed Single Pole Single Throw - SPST Micro Switch™ Snap-acting Switch.
  • Visible Control Point Scale and External Adjustment Screw Permit Easy Setting.
  • Horizontal and/or Vertical Mounting of the Remote Element Into Boiler, Tank, or Other Container Unless Otherwise Noted.
  • UL and CSA Listed Limit Device.

Models matching criteria: 2
High or Low Limit Aquastat® Controller with 100 F to 240 F Operating Temperature
In Stock
Does not ship to VA, United States
High or Low Limit Aquastat, 100F – 240F, 66” Capillary, 5F to 30F Adj Differential
In Stock
Does not ship to VA, United States

Specifications

Hazmat Information

  • UN 1294, TOLUENE, 3, II

Dimensions

  • Case: 5-5/8 in. high x 2 in. wide x 2-1/8 in. deep
  • Case: 143 mm high x 51 mm wide x 54 mm deep

Temperature Range

  • Maximum 150 °F
  • Maximum 66 °C

Includes

  • 5 1/2 ft (1.7 m) capillary

Mounting

  • Horizontal or Vertical

Electrical Ratings

  • Millivolt - 0.25 A @ 0.25 to 12 Vdc; At Full Load - 8A @ 120 Vac: 5.1A @ 240 Vac; At Locked Rotor - 48A @ 120 Vac: 30.6A @ 240 Vac

Approvals, Underwriters Laboratories Inc.

  • UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2

Approvals, Canadian Standards Association

  • Certified: File No. LR95329-1

Operating Temperature Range

  • 100 F to 240 F
  • 38 C to 116 C

Bulb Size

  • 3/8 in. x 2 7/8 in. copper
  • 10 mm x 73 mm copper

Differential Temperature

  • 5 F to 30 F adj.
  • 3 C to 17 C adj.

Switching Action

  • SPST, contacts break on temperature rise.

Capillary Length

  • 66 in.

  • For Limiting or Regulating Temperature of Liquids in Boilers or Tanks
  • Can Also Sense Duct or Outside Air Temperature.
  • High or Low Limit
