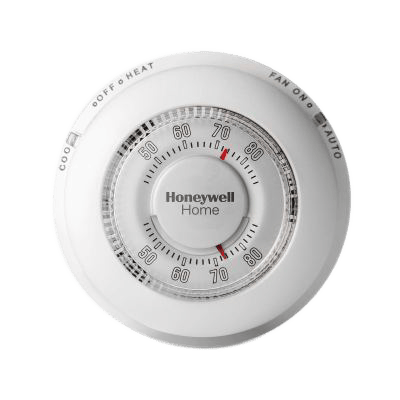

T87N1000/U Thermostat, Round™, Mercury Free, Manual

Part Number: T87N1000/U Brand: Resideo Technologies Inc

Thermostat, Round™, Mercury Free, Manual

Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States

The Round® thermostats provide electronic control of 24Vac heating and cooling systems with the classic twist to set dial.
Features
  • Mercury Free
  • Classic Styling
  • Premier White®
  • The T87K Heat Only Works with 2 or 3 Wire Heat-only Systems

Specifications

Hazmat Information

  • Button cell contained in equipment, Lithium metal button cells only contained in equipment, excepted per PI970

Dimensions

  • 3-11/16 in. diameter x 1-3/4 in. deep
  • 94 mm diameter x 45 mm deep

Mounting

  • Round

Electrical Ratings

  • 20 to 30 Vac

Frequency

  • 50 Hz; 60 Hz

Stages

  • 1 Heat/1 Cool

Operating Humidity Range

  • 5 to 90% RH (non-condensing)

Supply Voltage

  • 20 to 30 Vac

Switch Positions - System

  • HEAT-OFF-COOL

Switch Positions - Fan

  • AUTO-ON

Power Method

  • Battery assisted power stealing

Color

  • Premier White®

Sensor Element

  • Thermistor

Accuracy

  • ± 2 °F
  • ± 1 °C

Switch Type

  • Relay

Terminal Designations

  • R, Rc, W, Y, G, O, B

Changeover

  • Manual

Setting Temperature Range

  • 40 °F to 90 °F

Cycles per Hour

  • Adjustable 1, 3, 5, 9

Cool Current

  • 0.02A to 1.0A running

Heat Current

  • 0.02A to 1.0A running

  • 1 Heat/1 Cool Conventional Systems and Heat Pumps with No Auxiliary Heat
