GeniSys® Lockout Alarm Module

Brand: R.W. Beckett Corporation
Does not ship to VA, United States

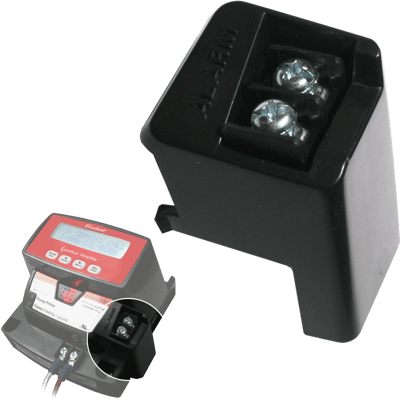

The Beckett GeniSys® Lockout Alarm 52040 functions as the interface between the GeniSys® 7505 120V Oil Burner Control and an existing alarm panel.

The 52040U will provide a contact closure in the event of a soft or hard burner lockout.

NOTE: Not compatible with any other series burner control.

Operation

When power is applied to the primary control, the alarm module continuously monitors the GeniSys control for both a hard and soft lockout signal.

If the alarm module detects either a hard or soft lockout, normally open relay contacts on the module close, creating a short circuit between the output terminals.

When the alarm module no longer senses a lockout signal or power is removed from the control, the module relay contacts will open.

Installation

Install the alarm module by carefully sliding the module onto the COM 1 port located on the right side of the control.

Referring to the diagram on the back page, connect the wires from an existing alarm panel in series with the two terminals on top of the module.

Specifications

Maximum Alarm Module Contact Switching Current

  • 2 Amps (AC or DC)

Minimum Alarm Module Contact Switching Current

  • 5 mA (AC or DC)

Maximum Alarm Module Switching Voltage

  • 30 V (AC or DC)

Minimum Alarm Module Switching Voltage

  • 5 V (AC or DC)

Storage & Operating Ambient Temperature

  • -40°F to +1500°F (-40°C to +65°C)

Humidity (Non-Condensing & Non-Crystalizing)

  • 5 to 95% RH
