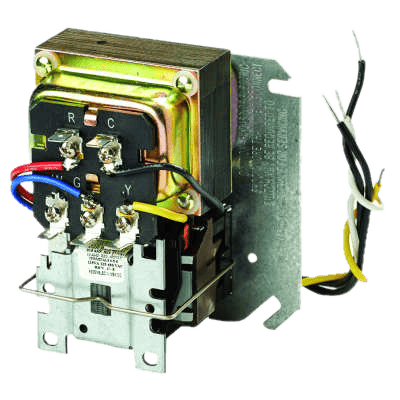

R8285D5001 50VA Fan Center with DPST Switching Action

Brand: Resideo Technologies Inc
Does not ship to VA, United States

Provides low voltage control of line voltage fan motors and auxiliary circuits in heating, cooling, or air conditioning systems.
Features
  • Transformer Powers Low Voltage Control Systems and Provides Overload Protection.
  • Low Voltage Terminal Board Provides Convenient Connections for Thermostat and Heating and Cooling Equipment Wiring.
  • Mounts on Standard 4" x 4" Junction Box.
  • Relay is Easily Replaced without Disturbing Wiring.

Models matching criteria: 2
50VA Fan Center with DPST Switching Action
In Stock
Does not ship to VA, United States
50VA Fan Center with DPST Switching Action
In Stock
Does not ship to VA, United States

Specifications

Dimension

  • 4-3/16 in. high, 4-1/2 in. wide, 2-13/16 in. deep.
  • 106 mm high, 114 mm wide, 71 mm deep

Includes

  • R8222U

Comments

  • For Hydronic Applications; use with SV9600 SmartValve™ System and other systems that require 50 VA capacity

Electrical Ratings

  • 11 W maximum

Frequency

  • 60 Hz

Approvals, Underwriters Laboratories Inc.

  • UL Component Recognized; File No. E4436, Vol.15, Sec.1, Guide No.XAPX2

Approvals, Canadian Standards Association

  • Certified: File No. LR95329-17

Supply Voltage

  • 50 VA; 26.5 V - Secondary

Voltage

  • 120 Vac

Switching Action

  • DPST (One Power Rated, One Pilot Duty)

Horsepower

  • 3/4 HP

  • For 24 Vac Fan Control Applications
