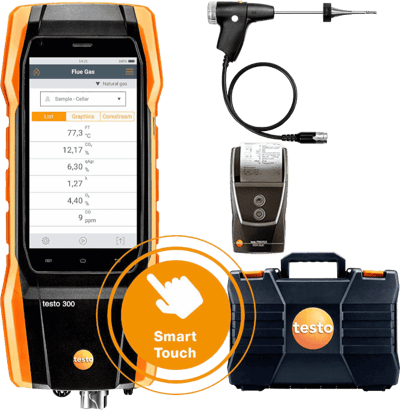

Testo 300 Longlife Kit with Printer - Flue Gas Analyzer (O₂, CO H₂-Compensated up to 30,000 ppm, NO)
Part Number: 0564 3004 84 Brand: TestoTesto 300 Longlife Kit with Printer - Flue Gas Analyzer (O₂, CO H₂-Compensated up to 30,000 ppm, NO)
Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States
Carry out installation and maintenance work on commercial heating systems using this flue gas analyzer with Longlife sensors.
The Testo 300 Longlife flue gas analyzer is supplied with O₂ and CO H₂-compensated sensor up to 30,000 ppm.
Also fitted with NO sensor for calculated NOx measurement. modular flue gas probe, Testo Bluetooth® Connector, Testo bluetooth printer, carry case.
Truly smart flue gas measurement on heating systems with the Testo 300 flue gas analyser.
High-quality sensors, intuitive operation with Smart-Touch technology and smart features, such as efficient documentation and e-mailing of reports, will make your day-to-day work easier.
Testo 300 Longlife Flue Gas Analyser with Smart-Touch Operation – Features
Impressive Measuring Technology and Quality
- O2, H2 - compensated CO sensor up to 30,000 ppm thanks to integrated fresh air dilution and NO sensor
- Longer sensor service life thanks to automatic sensor protection
- Integrated draught and gas zeroing without removing the probe – the flue gas probe can remain in the flue during zeroing
- For intensive daily use: high-quality Longlife sensors for O2 and CO with a service life of up to 6 years. That means at least one sensor replacement is saved in the course of a normal working life
- Designed and tested to compliance of EN 50379, Parts 1-3
- Manufacturer's warranty of up to 5 years on O2 and CO sensor with product registration – without a maintenance contract
- Versatile probes and fast probe changes: take advantage of quick-change probes and the multi-functional handle for attaching a variety of probe shafts (each available to order separately). You can, for instance, use longer probe shafts for flue gas pipes with larger diameters or flexible probes for difficult-to-access measuring points
- Optionally available probes and accessories for further measuring tasks, such as gas flow pressure measurement, gas pipe testing, differential temperature measurement and ambient CO measurement
Smart, Intuitive, Efficient: Easy Operation in Day-to-Day Work
- Smart-touch display for intuitive operation of the flue gas analyzer: the display responds without delay – just as easy as on your smartphone
- Get the measurement result faster: clearly structured measurement menus for all relevant measurements
- Create documentation (including measuring value, measuring location and customer data) easily on site
- Save PDF measurement reports directly in the instrument and always have them available
- Signature function: your customer can sign measurement reports directly on the instrument
- E-mail measurement reports directly to the office or to customers via WLAN (hotspot)
- Large 5-inch HD display – enables you to see all the system's parameters immediately
- Testo interface function for direct data transfer of measuring values to industry/customer-specific software*
- Ready to use straight away: in standby mode, the Testo 300 is ready to measure at the touch of a button. Use it straight away with the next customer – because you no longer need to wait for the end of the zeroing phase
- Integrated Bluetooth® interface: immediate printout of the measuring values on site with the appropriate printer
*Note: the manufacturer has to integrate an interface into the industry software to use the function
Other Advantages
- 10-hour rechargeable battery life: an average measurement period of 2 hours means the flue gas analyser is capable of being used for one week
- Integrated, extra-strong magnets for easy fixing during the measuring process
- For testing domestic gas & oil boilers
- Flue gas, tightness & let-by, differential temperature & pressure, ambient CO, & draught measurement menus
- 8,000 ppm CO sensor with H₂ compensation + automatic dilution allowing safe measurement up to 30,000 ppm CO
- 20% H₂ ready
- Bluetooth USB adapter supplied for connectivity to Testo Smart Probes
- Second screen functionality via free Testo Smart App
Specifications
Brand
Delivery Scope
- Testo 300LL Longlife flue gas analyzer with O₂ and CO(H₂ compensated) sensor up to 30,000 ppm via auto dilution + NO sensor (0633 3004 83)
- USB mains unit, including cable (0554 1105)
- Modular style flue gas probe, 180 mm, Ø 8 mm, Tₘₐₓ. 500° C, 1.5 m hose, including cone for fixing (0600)
- Testo Bluetooth connector (0554 3004)
- Bluetooth / IRDA printer (0554 0621)
- Hard carry case (0516 3300)
Operating Humidity
- 15 to 90 %RH Non-Condensing
Weight
- approximately 800 g
Dimensions
- 244 (including probe connection) x 98 x 59 mm
Operating Temperature
- -5° C to +45° C
Protection Class
- IP40
Product Colour
- Black/Orange
Display Type
- 5.0” touch display, HD 1280 x 720 pixels, IPS (160 k)
Power Supply
- Rechargeable Battery, USB Mains Unit
Authorizations
- TÜV-tested according to 1st German Federal Immission Control Ordinance (BImSchV) EN 50379, Parts 1-3
Warranty Conditions
- https://www.testo.com/guarantee
Guarantee
- Gas Sensors (O₂, CO) 48 months, NO, NO Low, CO Low sensor 24 months, Thermocouple 12 months, rechargeable battery: 12 months
Memory
- 1,000,000 Measuring Values
Storage Battery Type
- Lithium Ion Battery
Battery Life
- 10 h
Storage Temperature
- -20° C to +50° C
Charging Temperature
- 0° C to +45° C
Differential Pressure 4 Pa Measurement - Piezoresistive
- Measuring Range: -50 to +50 Pa
- Accuracy: ± 0.3 Pa (< 10 Pa) | ± 3 % of mv (Remaining Range)
- Resolution: 0.1 Pa
Ambient CO
- Measuring Range: 0 to 2000 ppm
- Accuracy: ± 10 ppm (0 to 100 ppm) | ± 10 % of mv (101 to 2000 ppm)
- Resolution: 1 ppm
Flue Gas CO₂ Calculation (Calculated from O₂)
- Measuring Range: 0 to CO₂ maximum (Display range)
- Accuracy: ± 0.2 Vol. %
- Resolution: 0.1 Vol. %
Flue Gas Loss (Calculated)
- Measuring Range: 0 to 99.9 %
- Resolution: 0.1 %
Flue Gas Degree of Effectivity, Eta (Calculated)
- Measuring Range: 0 to 120 %
- Resolution: 0.1 %
Differential Pressure Flue Gas Draught - Piezoresistive
- Measuring Range: -9.99 to +40 hPa
- Accuracy: ± 0.005 hPa (+0 to +0.1 hPa) | ± 0.02 hPa (+0.1 to +3.00 hPa) | ± 1.5 % of mv (3.01 to +40 hPa)
- Resolution: 0.001 hPa (0 to 0.1 hPa) | 0.01 hPa (Remaining Range)
CO Determination (with H₂-Compensation), Automatic Dilution
- Measuring Range: 0 to 30000 ppm
- Accuracy: ± 100 ppm or ± 10 % of mv
- Resolution: 1 ppm
Flue Gas CO Low (Without H₂-Compensation)
- Measuring Range: 0 to 500 ppm
- Accuracy: ± 2 ppm (40 to 500 ppm) | ± 5 % of mv Remaining Range
- Resolution: 0.1 ppm
Flue Gas O₂
- Measuring Range: 0 to 21 Vol. %
- Accuracy: ± 0.2 Vol. %
- Resolution: 0.1 Vol. %
Differential Pressure - Piezoresistive
- Measuring Range: -100 to +200 hPa
- Resolution: 0.01 hPa
- Accuracy: ± 0.5 hPa (0 to +50.0 hPa) | ± 1 % of mv (+50.1 to +100.0 hPa) | ± 1.5 % of mv (+100.1 to +200 hPa)
Temperature - TC Type K (NiCr-Ni)
- Measuring Range: -40.0° C to +1200.0° C
- Accuracy: ± 0.50° C (0° C to 100.0° C) | ± 0.50 % of mv (Remaining Range)
- Resolution: 0.1° C (-40° C to +999.9° C) | 1° C (Remaining Range)
Flue Gas NO
- Measuring Range: 0 to 3000 ppm
- Accuracy: ± 5 ppm (0 to 100 ppm) | ± 5 % of mv (101 to 2000 ppm) | ± 10 % of mv (2001 to 3000 ppm)
- Resolution: 1 ppm
Flue Gas NO Low
- Measuring Range: 0 to 300 ppm
- Accuracy: ± 2 ppm (0 to +39.9 ppm) | ± 5 % of mv (40 to 300 ppm)
- Resolution: 0.1 ppm
Modular Flue Gas Probe, 180 mm, Ø 8 mm, Tₘₐₓ 500° C, TÜV-tested
- Diameter Probe Shaft: 8 mm
- Cable Length: 2.2 m
- Length Probe Shaft: 180 mm
- Product Colour: Black
- Temperature Max.: 500° C
- Diameter: 6 mm
- Weight: 524 g
Spare Particle Filter, 10 off
- Weight: 12 g
- Dimensions: height: 2.9 mm, ø: 29.7 mm
- Product Colour: White
Spare Thermal Paper for Printer
- Dimensions: 120 x 75 x 60 mm
- Product / Housing Material: Paper
- Product Colour: White
- Weight: 50 g
Testo EasyHeat v2.12 SP6 - PC Software
- System Requirements: Windows® 7, Windows® 8, Windows® 10
Instrument Case (Height: 130 mm) - for Instrument, Probes and Accessories
- Weight: 3880 g
- Dimensions: 520 x 400 x 130 mm
- Product / Housing Material: Plastic
- Product Colour: Black
Testo Bluetooth® Connector
- Battery Life: None, operated via Testo 300
- Connection: TUC 1 or TUC 2
- Radio Range: 100 m
- Compatible With: Testo 510i, Testo 115i, Testo 915i
- Flue Gas Measurement on Heating Systems
- Ideal for Measurements involving Heating Systems:
- High-Quality Sensors, Smart-Touch Operation, Clearly Structured Measurement Menus, Creation of Documentation on Site, E-mailing of Reports, Large HD Display, Robust Housing
- Further Areas of Application:
- Gas Flow Pressure Measurement*, Gas Pipe Test*, Differential Temperature Measurement (Flow and Return Temperature on Heating Systems)*, Ambient CO Measurement*, Flue Draught Measurement on Heating Systems*, Integrated 4 Pa Measurement for Combustion Equipment
- Ideal for Measurements involving Heating Systems:
* Please Note: Additional Probes or Accessories are Required for these Measurements and have to be Ordered Separately
