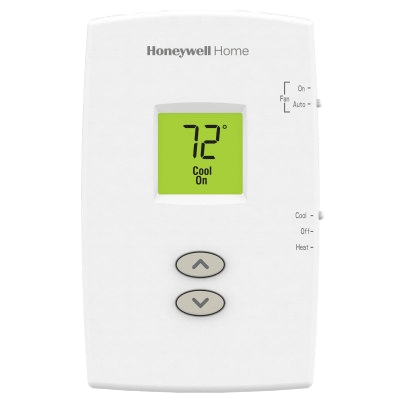

TH1100DV1000/U PRO 1000 Vertical Non-programmable Thermostats

Part Number: TH1100DV1000/U Brand: Resideo Technologies Inc

PRO 1000 Vertical Non-programmable Thermostats

Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States

PRO 1000 Vertical Non-programmable Thermostat.

Specifications

Dimensions

  • 4-11/16 in. High x 2-7/8 in. Wide x 1-1/8 in. Deep
  • 120 mm high x 74 mm wide x 28 mm deep

Mounting

  • Vertical

Electrical Ratings

  • 20 to 30 Vac or 750 mV

Frequency

  • 50 Hz; 60 Hz
  • 50 Hz,60 Hz

Stages

  • 1 Heat

Operating Humidity Range

  • 5 to 90% RH, non-condensing

Switch Positions - System

  • HEAT-OFF-COOL

Power Method

  • Dual Powered: Battery or Hardwire

Color

  • Premier White®

Terminal Designations

  • R, C, W

Display Size

  • 1.32 sq in.

Changeover

  • Manual

Setting Temperature Range

  • Selectable Heat: 40 °F to 90 °F or 35 °F to 90 °F
  • Selectable Heat 4.5 °C to 32 °C or 1.5 °C to 32 °C

Cycles per Hour

  • Heating 2-6 CPH

Heat Current

  • 0.02 A to 1.0 A running

Comments

  • Adjustable Temperature Scale: Standard selection of 40 to 90F or Garage selection of 35 to 90F

  • Heat Only
