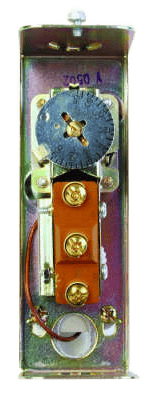

L6006C1018/U High or Low Limit Surface Mount Controller with SPDT, Operating Range 65-200F, Factory Stop at 200F

Part Number: L6006C1018/U Brand: Resideo Technologies Inc

High or Low Limit Surface Mount Controller with SPDT, Operating Range 65-200F, Factory Stop at 200F

Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States

Aquastat® Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required.
Features
  • Totally Enclosed Micro Switch™ Snap-acting Switches Operate on Temperature Rise to Set Point.
  • Visible Control Point Scale and External Adjustment Screw Permit Easy Setting.
  • Horizontal or Vertical Insertion of the Sensing Element.
  • Direct, Well Immersion, or Surface Mounting of the Sensing Element Available.
  • Remote Bulb Model May be Used to Sense Air Temperature in Ducts and in Outside Air Sensing Applications.
  • Direct or Well Immersion Tradeline Models Include Heat-conductive Compound.
  • Select Models Have Wells.

Specifications

Hazmat Information

  • UN 1294, TOLUENE, 3, II

Dimensions

  • Case: 5-5/8 in. high x 2 in. wide x 2-3/4 in. deep
  • Case: 136 mm high x 51 mm wide x 70 mm deep

Temperature Range

  • Maximum Ambient 150 °F
  • Maximum Ambient 66 °C

Includes

  • Stop factory-set at 200 °F (93 °C)

Mounting

  • Horizontal or Vertical or Surface mounting

Electrical Ratings

  • Millivolt - 0.25 A @ 0.25 to 12 Vdc; At Full Load - 8A @ 120 Vac: 5.1A @ 240 Vac; At Locked Rotor - 48A @ 120 Vac: 30.6A @ 240 Vac

Approvals, Underwriters Laboratories Inc.

  • UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2

Approvals, Canadian Standards Association

  • Certified: File No. LR95329-1

Operating Temperature Range

  • 65 °F to 200 °F
  • 18 °C to 93 °C

Bulb Size

  • 3/8 in. x 2-7/8 in. copper
  • 10 mm x 73 mm copper

Differential Temperature

  • 5 °F to 30 °F adj.
  • 3 °C to 17 °C adj.

Switching Action

  • SPDT

  • Circulator Control and High Limit or Low Limit
