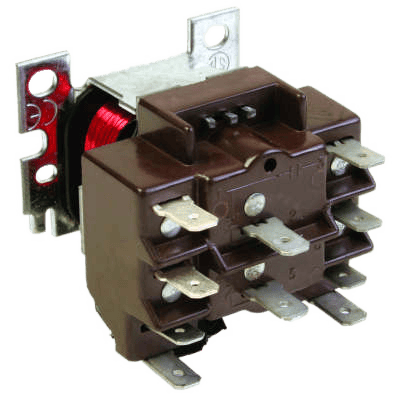

R8222U1079 24 Vac General Purpose Relay

Brand: Resideo Technologies Inc
Does not ship to VA, United States

Provide heavy duty switching for refrigeration and air conditioning equipment, appliances, vending machines and similar applications.
Features
  • Molded Terminal Numbers and Circuit Diagram on Top of Relay Provide Easy Identification for Wiring and Checking System Operation.
  • Open Coil Assures Cooler Operation.
  • Laminated Magnet Construction for Higher Efficiency.
  • Base Designed for Easy Replacement of Competitive Relays.
  • Plug Compatible with Steveco 90-340 and Mars 90340.

Models matching criteria: 2
General Purpose Relay with DPST Normally Open Switching
In Stock
Does not ship to VA, United States
24 Vac General Purpose Relay with DPST, Normally Open Switching
In Stock
Does not ship to VA, United States

Specifications

Dimensions

  • 1-55/64 in. high x 2-7/64 in. wide x 2-3/8 in. deep
  • 47 mm high x 53.5 mm wide x 60 mm deep

Frequency

  • 50 Hz; 60 Hz

Approvals, Canadian Standards Association

  • Certified: File No. LR35066, Guide No. 184-N-13.13

Approvals, Underwriters Laboratories Inc.

  • UL Component Recognized: File No.E59779, Guide No.NLDX2

Tradeline Value

  • Tradeline

Electrical Connections

  • Single 1/4 in. quick-connect on coil terminals

Temperature Ratings

  • -29 °C to +68 °C
  • -20 °F to +155 °F

Switching

  • DPST N.O.(1 P&1 pilot duty)

Pilot Duty Ratings

  • Minimum: 3 VA @ 24 Vac, 120 Vac, & 480 Vac; Maximum: 25 VA @ 24 Vac, 125 VA @ 120 Vac, 240 Vac, & 480 Vac; Resistive: 3 A @ 277 Vac (0.75 power factor); PowerPile: (Normally Open Contacts Only) 0.25 A @ 0.25 to 12 Vdc

Contact Ratings - AFL

  • 3 A @ 480 Vac; 6 A @ 208 Vac, 240 Vac, 277 Vac; 12 A @ 120 Vac

Contact Ratings - ALR

  • 60 A @ 120 Vac; 18 A @ 480 Vac; 35 A @ 208 Vac, 240 Vac, 277 Vac

Contact Ratings - Resistive

  • 15 A @ 120 Vac, 208 Vac, 240 Vac, 277 Vac; 10 A @ 480 Vac

Coil Ratings Voltage

  • 24 Vac
