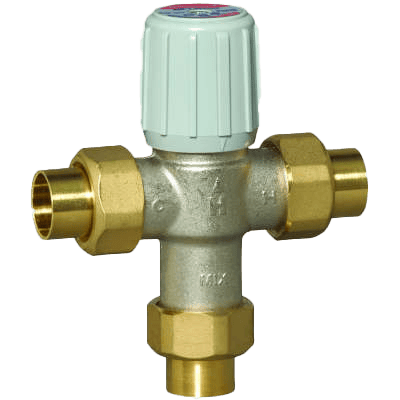

AM101-US-1LF/U 3/4 inch Sweat Union Mixing Valves

Part Number: AM101-US-1LF/U Brand: Resideo Technologies Inc

3/4 inch Sweat Union Mixing Valves

Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States

AM-1 series adjusts, maintains, and limits the hot water temperature settings to provide comfort and protect equipment at home.

While increasing the amount of safe, usable hot water, it efficiently offers anti-scald, anti-chill protection.
  • Features Dual Purpose Mixing or Diverting Values
  • Offers Constant Water Temperature Under Changing Operating Conditions
  • Temperature is Limited at Any Point and if Cold Water Supply is Interrupted, Flow Reduction Occurs in Seconds
  • Provides Reliable Performance at Minimum Flow of 05 GPM and Proportional Valve for Simultaneous Control of Hot and Cold
  • Designed for Easy Maintenance and Teflon® Coating Prevents Mineral Build-up and Extends Life
  • Lead Free Products Have Products Numbers End in LF
  • Available Temperature Gauge Adapter in Lead-free Brass Material with EPDM O-Ring.

Specifications

Comments

  • Low lead Content <.25% by weighted average

Approvals, Canadian Standards Association

  • CSA Certified

Approvals, Others

  • NSF/ANSI; IAPMO

Approvals, ASSE

  • 1017

Maximum Safe Operating Pressure

  • 150 psi
  • 1034 kPa

Connection Type

  • Union ProPress

Minimum Flow Rate

  • 0.5 gpm
  • 1.9 lpm

Pipe Size

  • 3/4 in.
  • DN20

Fluid Temperature

  • Cold Inlet: 4 °C to 27 °C: Hot Inlet: 49 °C to 82 °C; Mixed Outlet: 21 °C to 63 °C
  • Cold Inlet: 39 °F to 80 °F; Hot Inlet: 120 °F to 180 °F; Mixed Outlet: 70 °F to 145 °F

Capacity

  • 3.9 Cv

Valve Type

  • Mixing Valves

Body Materials

  • Teflon-Coated, Nickle-Plated Low Lead Brass

Packing Materials

  • EPDM O-rings

  • Scald Prevention in Domestic Water
  • Nursing Homes
  • Public Facilities
  • Automatic Faucets
  • Industrial Applications
  • Photo Processing
