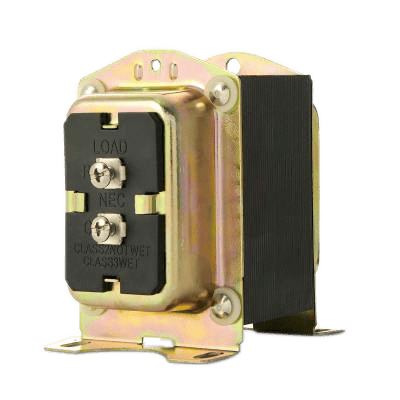

AT175A1008/U 75VA, Foot Mounted 120/208/240 Vac Transformer

Part Number: AT175A1008/U Brand: Resideo Technologies Inc

75VA, Foot Mounted 120/208/240 Vac Transformer

Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States

Resideo 75 VA general purpose transformers power 24 Vac circuits.
Features
  • Color-coded Lead Wires for Primary Connections and Screw Terminals for Secondary Connections
  • Includes Fixed 1/4 inch - 6mm Male Quick-connects: AT175A Models Only or Color-coded Lead Wires for Primary and Secondary Connections
  • Meets Underwriters Laboratories Standard UL 1585
  • Identified Class 2 not Wet, Class 3 Wet

Specifications

Dimensions

  • 3-3/16 in. high x 2-3/16 in. wide x 3-5/8 in. deep
  • 81 mm high x 56 mm wide x 93 mm deep

Temperature Range

  • -20 °F to +122 °F
  • -29 °C to +50 °C

Includes

  • Metal end bells

Mounting

  • Foot mounted, plate mounted on 2x4 in. or 4x4 in. outlet box , clamp mounted using outlet box knockout, or panel mounted

Electrical Ratings

  • Primary voltage - 120 Vac, 208 Vac, 240 Vac; Secondary voltage - 27.5 V.O.C.

Frequency

  • 60 Hz

Approvals, Underwriters Laboratories Inc.

  • UL Listed: A,C,F models. File # E14881

Approvals, Canadian Standards Association

  • CSA Certified: A & B models.

Primary Electrical Connections

  • 9 in. leadwires
  • 229 mm leadwires

Secondary Electrical Connections

  • 2 screw terminals

Electrical Ratings, Output

  • 24 Vac at 75 VA
