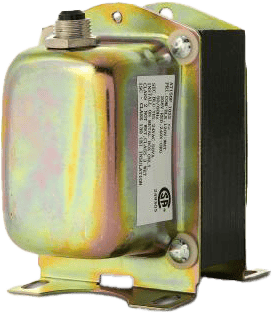

AT150F1022/U 50 VA, Multi Mount - Plate/Panel - 120/208/240 Vac Transformer

Part Number: AT150F1022/U Brand: Resideo Technologies Inc

50 VA, Multi Mount - Plate/Panel - 120/208/240 Vac Transformer

Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States

Resideo 50 VA general purpose transformers power 24Vac circuits.
Features
  • Color-coded Lead Wires for Primary Connections and Screw Terminals for Secondary Connections
  • Includes Fixed 1/4 inch - 6mm Male Quick-connects: AT150A Models Only or Color-coded Lead Wires for Primary and Secondary Connections
  • Meets Underwriters Laboratories Standard UL 1585
  • Identified Class 2 not Wet, Class 3 Wet

Specifications

Dimensions

  • 3-3/16 in. high x 2-3/16 in. wide x 3-5/8 in. deep
  • 81 mm high x 56 mm wide x 93 mm deep

Temperature Range

  • -20 °F to +105 °F
  • -29 °C to +41 °C

Includes

  • Metal end bells and button for manually resetting the breaker

Mounting

  • Includes 1/2 14 NPSM conduit connector and lock nut for mounting on plate or panel (not included) with 7/8 in. knockout, and feet for surface mount.

Electrical Ratings

  • Primary voltage - 120 Vac, 208 Vac, 240 Vac; Secondary voltage - 27.5 V.O.C.

Frequency

  • 60 Hz

Approvals, Underwriters Laboratories Inc.

  • UL Listed: File no. E14881, Guide no. XOKV.

Approvals, Canadian Standards Association

  • Certified: File No. LR95329-18

Primary Electrical Connections

  • 9 in. leadwires
  • 229 mm leadwires

Secondary Electrical Connections

  • 9 in. leadwires
  • 229 mm leadwires

Electrical Ratings, Output

  • 24 Vac at 50 VA

Tradeline Value

  • Tradeline
