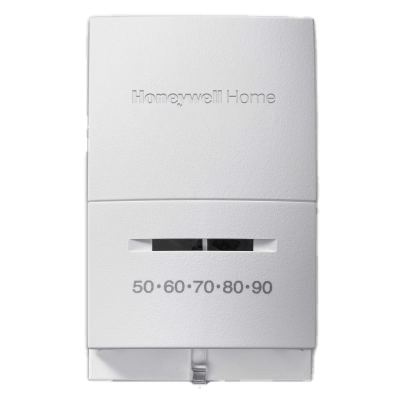

T822K1018/U Thermostat, Mercury Free, Heat, Low Volt

Part Number: T822K1018/U Brand: Resideo Technologies Inc

Thermostat, Mercury Free, Heat, Low Volt

Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States

Thermostats provide 24 Vac control of heating or cooling systems.
Features
  • Vented Cover for Improved Temperature Sensing
  • Setting Lever and Thermometer Scale on Thermostat Face
  • Mounts Directly on the Wall or on Vertical Outlet Box
  • Integrated Thermometer and Setting Scale

Specifications

Dimensions

  • 4-3/4 in. high x 2-7/8 in. wide x 1-3/8 in. deep
  • 121 mm high x 73 mm wide x 35 mm deep

Mounting

  • Vertical

Electrical Ratings

  • 20 to 30 Vac

Stages

  • 1 Heat

Supply Voltage

  • 20 to 30 Vac

Color

  • Premier White®

Sensor Element

  • Bimetal

Accuracy

  • ±2 °F
  • ±1 °C

Switching Action

  • SPST

Switch Type

  • Precision Snap Action

Terminal Designations

  • R, W

Setting Temperature Range

  • 45 °F to 95 °F

Heat Current

  • 0.02 A to 1.0 A running

  • Heat Only
