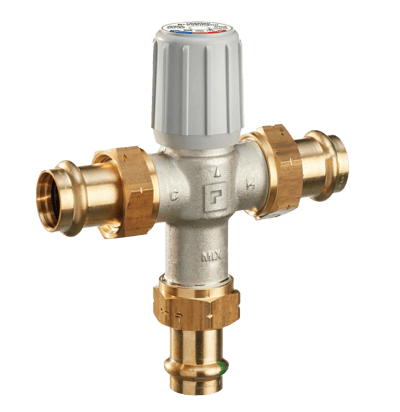

AM101-UP-1LF/U 3/4 in. Union ProPress Lead-free Mixing Valve

Part Number: AM101-UP-1LF/U Brand: Resideo Technologies Inc

3/4 in. Union ProPress Lead-free Mixing Valve

Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States

AM-1 series adjusts, maintains, and limits the hot water temperature settings to provide comfort and protect equipment at home.

While increasing the amount of safe, usable hot water, it efficiently offers anti-scald, anti-chill protection.
  • Features Dual Purpose Mixing or Diverting Values
  • Offers Constant Water Temperature Under Changing Operating Conditions
  • Temperature is Limited at Any Point and if Cold Water Supply is Interrupted, Flow Reduction Occurs in Seconds
  • Provides Reliable Performance at Minimum Flow of 05 GPM and Proportional Valve for Simultaneous Control of Hot and Cold
  • Designed for Easy Maintenance and Teflon® Coating Prevents Mineral Build-up and Extends Life
  • Lead Free Products Have Products Numbers End in LF
  • Available Temperature Gauge Adapter in Lead-free Brass Material with EPDM O-Ring.

Specifications

Comments

  • Low lead Content <.25% by weighted average

Approvals, Canadian Standards Association

  • CSA Certified

Approvals, Others

  • NSF/ANSI; IAPMO

Approvals, ASSE

  • 1017

Operating Temperature Range

  • 70 °F to 145 °F
  • 21 °C to 63 °C

Connection Type

  • Union ProPress

Pipe Size

  • 3/4 in.
  • DN20

Capacity

  • 3.9 Cv

Valve Type

  • Mixing Valves

  • Domestic Water
  • Nursing Homes
  • Public Facilities
  • Automatic Faucets
  • Radiant Floor Heating
  • Space Heating
  • Combo Systems
  • Solar Hot Water
  • Greenhouses
  • Industrial Applications
  • Photo Processing

show more
