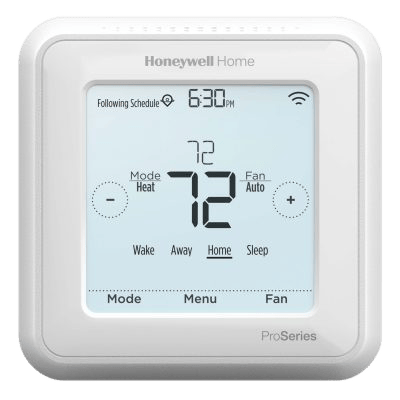

TH6220WF2006/U T6 Pro Smart Programmable Thermostat with Stages Up to 2 Heat/1 Cool Heat Pump or 2 Heat/2 Cool Conventional

Part Number: TH6220WF2006/U Brand: Resideo Technologies Inc

T6 Pro Smart Programmable Thermostat with Stages Up to 2 Heat/1 Cool Heat Pump or 2 Heat/2 Cool Conventional

Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States

The T6 Pro Smart offers functionality that’s easy to use and smart features that are easy to love.

Program it based on the homeowners' schedule, or let it adapt to their life as plans change.

Homeowners can adjust it from anywhere using a smartphone or tablet, ensuring maximum comfort when at home and energy savings whether they are home or away.
Features
  • TH6320WF2003 Up to 3H/2C Heat Pump and 2H/2C Conventional
  • TH6220WF2006 Up to 2H/1C Heat Pump and 2H/2C Conventional
  • Geofencing, 7-Day, 5-2, 5-1-1, 1-Week or Non-programmable
  • Optional Ventilation Control for Projects that Need to Meet the ASHRAE 62.2 Standard - TH6320WF Only
  • Optional Dual Fuel- TH6320WF Only
  • Uses the UWP Mounting System that’s Standard Across All T Series Thermostats
  • Setup and Scheduling can be Done at the Wall on the Thermostat, or Using the Lyric App
  • Simple Homeowner Hand-Off Process Enables Customers To Complete The Wi-Fi Connection Process On Their Own
  • Integrates with Smart Home Apple Homekit and Amazon Alexa for Customers Who Want to Control their Smart Home Devices from a Single App
  • Customers can Program a Schedule or Use Location-based Control with Geofence Technology, which Uses their Smartphone Location to Save Energy When they're Away and Make the Home Comfortable When They Return
  • Optional Wired Indoor/Outdoor Sensors
  • Large Touchscreen Display
  • 5-Year Warranty
  • Energy Star® Certified

Specifications

Dimensions

  • 4-1/16 in. long x 4-1/16 in. wide x 1-3/32 in. deep
  • 103.6 mm long x 103.6 mm wide x 28 mm deep

Includes

  • Thermostat, UWP mounting system, Installation (J-box) adaptor, Small decorative cover plate, screws and anchors, Installation Guide, and User Guide

Mounting

  • UWP Mounting System

Electrical Ratings

  • 20 to 30 Vac

Frequency

  • 50 Hz; 60 Hz

Stages

  • Up to 2 Heat/1 Cool Heat Pumps; Up to 2 Heat/2 Cool Conventional Systems

Electrical Connections

  • Honeywell Home UWP Mounting System

Operating Humidity Range

  • 5 to 90% RH, non-condensing

Supply Voltage

  • 20 to 30 Vac

Switch Positions - System

  • HEAT-OFF-COOL-AUTO-EM.HEAT

Switch Positions - Fan

  • AUTO-ON-CIRC-FOLLOW SCHEDULE

Operating Temperature Range

  • 37 °F to 102 °F
  • 2.7 °C to 39 °C

Shipping and Storage Temperature Range

  • - 20 °F to 120 °F
  • - 28.9 °C to 48.9 °C

Network Communications

  • Wi - Fi

LEDs

  • LED Back Light

Power Method

  • Hardwired

Ambient Temperature Range

  • 0 C to 50 C
  • 32 F to 120 F

Color

  • White

Display

  • Touch Screen

Accuracy

  • 1 °F
  • 0.5 °C

Differential Temperature

  • ± 1 °F
  • ± 0.5 °C

Interstage Differential Temperature

  • 1 to 1.5 F Multistage models only

Switch Type

  • Relay

Programmability

  • 7 day, 5-1-1 day, 5-2 day, 1 day, Geolocation or Non-programmable

Display Size

  • 6.89 sq. in.

Temperature Control Mode Selections

  • Ambient Air Temperature

Changeover

  • Auto or Manual

Setting Temperature Range

  • Heat: 40 °F to 90 °F; Cool 50 °F to 99 °F
  • Heat: 4.5 C to 32.0 C; Cool: 10 C to 37.0 C

Cool Current

  • 0.02 A to 1.0 A running

Heat Current

  • 0.02-1.0 A

Fan Current

  • 0.02-.5 A

External Sensors Available

  • Optional: Outdoor - C7089U1006, Remote Indoor - C7189U1005

  • 24 Vac Systems: Gas, Oil, Electric Warm Air
  • Hot Water Coil; Gas, Oil, Electric Hydronic
  • Steam / Gravity Systems
