GeniSys® Contractor Tool

Brand: R.W. Beckett Corporation
Does not ship to VA, United States

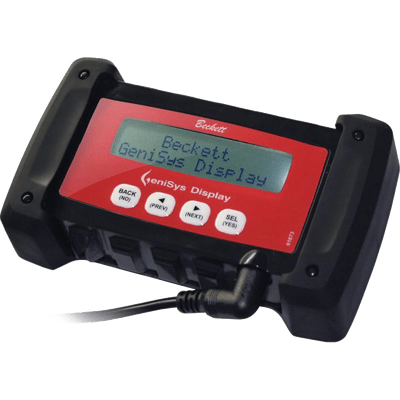

The Beckett GeniSys® Contractor Tool is designed as a portable diagnostic tool to help technicians program and troubleshoot Beckett oil primary controls like the GeniSys® 7505 120V Oil Burner Control, the GeniSys® 7575 120V Oil Burner Control, and the GeniSys® 7580 240V Oil Burner Control.

The screen shows current burner status, control timings, and a 15-cycle burner history. The programming mode allows a technician to program both the pre-purge and post-purge timings.
Features
  • 32 character backlit alphanumeric display
  • Sealed pushbutton keypad
  • Low voltage operation
  • Continuous real-time cycle monitoring
  • Continuous cad cell resistance reading
  • Continuous AC line voltage readout
  • Real-time error notification
  • Customizable pre-time (valve-on delay) & post-time (Motor off delay)
  • 15 cycle history monitoring
  • 5-year warranty
  • Customizable lockout service message

Models matching criteria: 5
GeniSys® Contractor Tool 6-pack with 7505A GeniSys® Control
In Stock
Does not ship to VA, United States
GeniSys® Contractor Tool
In Stock
Does not ship to VA, United States
GeniSys® Contractor Tool
In Stock
Does not ship to VA, United States
GeniSys® Contractor Tool 6-pack with 7505A and 7505B GeniSys Controls
In Stock
Does not ship to VA, United States
GeniSys® Contractor Tool with Mounting Kit
In Stock
Does not ship to VA, United States

Specifications

Input

  • Voltage: 5 VDC +4%
  • Current: 25 mA maximum display current

Environmental Ratings

  • Storage Ambient Temperature: -22°F to +150°F (-30°C to +65°C)
  • Operating Ambient Temperature: 0°F to +150°F (-18°C to +65°C)
  • Moisture: 5-85% RH, non-condensing and non-crystallizing

Documentation

show more
