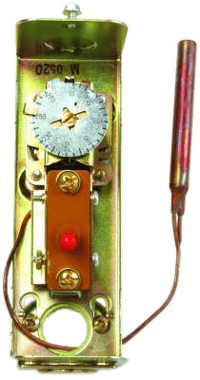

Aquastat, Breaks on Rise, 130-270F Range, 250F Factory Stop, Less Well

Price
Request a Quote
Stock
In Stock
Does not ship to VA, United States

Specifications

Hazmat Information

  • UN 1294, TOLUENE, 3, II

Dimensions

  • Case: 5-5/8 in. high x 2 in. wide x 2-1/8 in. deep
  • Case: 143 mm high x 51 mm wide x 54 mm deep

Temperature Range

  • Maximum 150 °F
  • Maximum 66 °C

Includes

  • Heat-conductive compound; Stop factory-set at 250 F (121 C); Well adapter

Mounting

  • Horizontal or Vertical

Electrical Ratings

  • Millivolt - 0.25 A @ 0.25 to 12 Vdc; At Full Load - 8A @ 120 Vac: 5.1A @ 240 Vac; At Locked Rotor - 48A @ 120 Vac: 30.6A @ 240 Vac

Approvals, Underwriters Laboratories Inc.

  • UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2

Approvals, Canadian Standards Association

  • Certified: File No. LR95329-1

Approvals, American Gas Association

  • AGA Certified

Tradeline Value

  • Tradeline

Operating Temperature Range

  • 130 F to 270 F
  • 54 C to 132 C

Bulb Size

  • 10 mm x 73 mm copper
  • 3/8 in. x 2-7/8 in. copper

Differential Temperature

  • Manual Reset

Switching Action

  • SPST, contacts break on temperature rise.

Capillary Length

  • 3 in.
  • 76 mm
